  3. DEWALT 20V MAX* Compact Died Crimping Tool Kit
DEWALT

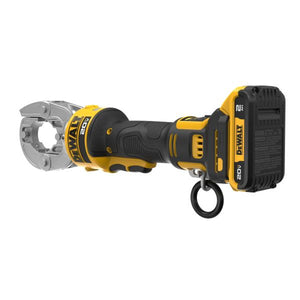

DEWALT 20V MAX* Compact Died Crimping Tool Kit

DCE310D2

The DEWALT® Compact Died Crimping Tool produces cULus Classified crimps using compatible connectors from leading manufacturers (see user manual for compliant chart of dies and connectors). The tool accepts DEWALT® U-Type dies (sold separately) and has a capacity from #8 - 600 MCM Cu / #8 - 350 MCM Al. A 180° pivoting head and inline body allows the crimper to maneuver into tight spaces while also allowing for one-handed operation. The tool features Crimp Connect® software, an onboard intelligence system integrated into the tool that provides detailed reports of successfully completed cycles by the tool, as well as tool calibration and service history. An integrated LED interface is used to communicate power on/off, cycle completion, and if recalibration or service is needed. A bright LED ring helps to illuminate the crimping area when working in dark spaces. The tool also includes a shoulder strap for convenience when transporting around the jobsite.

    • 600 MCM Cu / 350 MCM Al crimping capacity for copper and aluminum cable
    • Accepts DEWALT® U-Type Dies and completes UL Classified Crimps with leading manufacturers' connectors (sold separately)
    • Crimp Connect® software provides detailed reports of work done
    • 180° head rotation to access tight spaces
    • Easily accessible manual release trigger to allow tool re-alignment mid-crimp
    • Bright LED ring to illuminate work area
    • Shoulder strap and connection ring for portability
    • Asset Management on the Jobsite: Chip pocket accepts TOOL CONNECT™ Chip and connects with TOOL CONNECT™ Site Manager app for seamless worksite organization (DCE042 sold separately)
    • Made in USA with global materials (tool only)
  • Battery Included Battery Included:
    true
    Battery Qty Battery Qty:
    2
    Battery Type Battery Type:
    20V MAX* Lithium Ion
    Battery Amp Hours Battery Amp Hours:
    2 Ah
    Charger Included Charger Included:
    Yes
    Charger Type Charger Type:
    Wall Mountable Charging Base
    Cordless vs Corded Cordless vs Corded:
    Cordless
    Product Application Product Application:
    CUTTING
    Height Height:
    15.375 IN
    Length Length:
    23.200 IN
    Weight Weight:
    23.930 LB
    Width Width:
    7.813 IN
    Voltage Voltage:
    20 V
    Watt Hours Watt Hours:
    40

    Includes:

    (1) 20V MAX* Compact Died Crimping Tool , (2) DCB203 2Ah Compact Li-Ion Batteries , (1) Charger , (1) Shoulder Strap , (1) USB-C Cable , (1) Tool Connect Chip , (1) ToughSystem 2.0 Case

* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
