DEWALT Cable Crimping Tool, Dieless
DCE350M2

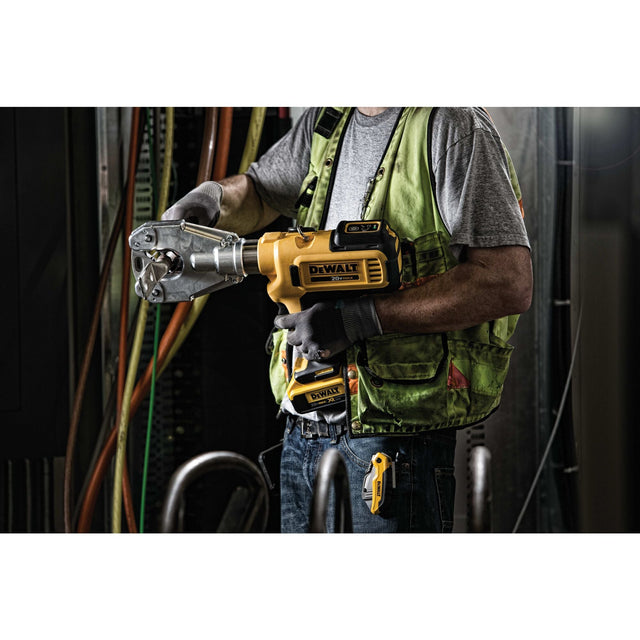

The DEWALT Dieless Crimper (DCE350) features a universal 4 pusher design and crimps #8 750 MCM Copper and Aluminum cable and connectors. An innovative head design with guard rails helps to protect crimping head when crimping small diameter cable. A 360° pivoting head allows the crimper to maneuver in tight spaces. Forward and reverse triggers offer convenient one-handed operation. The tool features Crimp Connect® software, an onboard intelligence system integrated into the tool that provides detailed reports of date, time, force, and successfully completed cycles of the crimps completed by the tool. Crimp Connect® software also reports on tool calibration and service history. An integrated LED interface is used to communicate power on or power off, battery state of charge, successfully completed cycles of the crimps completed by the tool, and if recalibration or service is needed. A bright LED light helps to illuminate the crimping area when working in dark spaces. The tool also includes attachment points and a shoulder strap for convenience when transporting it around the jobsite.
-
- 36 degree pivoting head allows the crimper to maneuver in tight spaces
- Bright LED light helps to illuminate work area
- Crimp Connect software of the battery cable crimping tool provides detailed reports of work done
- Easily accessible forward and reverse triggers for one-handed operation.
- Guard rails help to protect crimping head when crimping small diameter cable
- Onboard diagnostics of the cable crimper indicates battery life successfully completed cycles, service needed, and operating temperature range
- Shoulder strap and connection ring for portability
- The cable crimpting tool has #8 - 75 McM Cu / 75 Al crimping capacity for copper and aluminum cable and connectors
-
Battery Included:trueBattery Qty:2Battery Type:20V MAX* Lithium IonBattery Amp Hours:4 AhCharger Included:trueCharger Type:Jack PlugCordless vs Corded:CordlessProduct Application:ELECTRONICSHeight:15.750 INLength:23.020 INWeight:24.950 LBWidth:5.580 INVoltage:20 VWatt Hours:80
Includes:
(1) DCE350 Cable Crimping Tool,(2) DCB204 4 Ah Li-Ion batteries,(1) DCE115 Charger,(1) Shoulder Strap,(1) Kitbox
* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
