DEWALT 20V MAX* Hydraulic Knockout Tool Kit with 1/2'' - 4'' Punches and Dies
DCE600D1K4

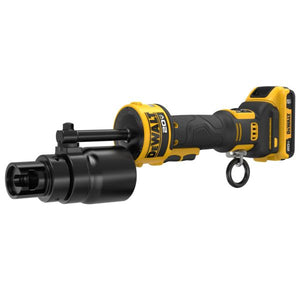

The DEWALT® 20V MAX* Hydraulic Knockout Tool (DCE600) delivers up to 11 tons of force* output, providing the ability to perform heavy-duty applications in a lightweight design. The DCE600 knockout dies contain embedded magnets which securely attach to mild steel, to maximize precision in punch alignment. Punches split slugs ranging from 1/2'' - 4'', allowing ease of use in disassembling the system once the knockout is completed. The tool's inline design, 180° rotating head, and ability to set up the punch and die system without the weight of the tool provides versatility in the knockout process flow. The DCE600 utilizes DEWALT®'s 20V MAX* system, it joins 300+ products in the DEWALT® 20V MAX* line, each engineered to meet the specific needs of demanding trades.
-
- Punches up to 10 gauge mild steel and 12 gauge stainless steel
- Threadless draw stud connection allows punch and die setup without weight of the tool
- Embedded magnets in dies for precise punch setup
- Inline body and 180° rotatable head allows maximum clearance in tight spaces
- Detent head securely holds cylinder in place before, during, and after punch completion
- Bright LED ring to illuminate work area
- Shoulder strap and connection ring for portability
- Asset Management on the Jobsite: Chip pocket accepts TOOL CONNECT™ Chip and connects with TOOL CONNECT™ Site Manager app for seamless worksite organization (sold separately)
- Crimp Connect® software provides detailed reports of work done
- Made in USA with global materials (tool only)
-
Battery Included:
true
Battery Type:
20V MAX* Lithium Ion
Battery Amp Hours:
2 Ah
Charger Included:
Yes
Cordless vs Corded:
Cordless
Height:
15.230 IN
Length:
23.220 IN
Weight:
63.260 LB
Width:
15.180 IN
Voltage:
20 V
Watt Hours:
40Includes:
(1) 20V MAX* Hydraulic Knockout Tool , (1) DCB203 2Ah Li Ion Battery , (1) Charger , (1) 7/16'' Knockout Draw Stud (DCE600DS716) , (1) 3/4'' Knockout Draw Stud (DCE600DS34) , (1) 1-1/8'' Knockout Draw Stud (DCE600DS118) , (1) Shoulder Strap , (1) USB-C Cable , (1) Tool Connect™ Chip , (2) TOUGHSYSTEM 2.0 Case , (1) 1/2'' Knockout Punch (DCE600012P) , (1) 1/2'' Knockout Die (DCE600012D) , (1) 3/4'' Knockout Punch (DCE600034P) , (1) 3/4'' Knockout Die (DCE600034D) , (1) 1'' Knockout Punch (DCE600100P) , (1) 1'' Knockout Die (DCE600100D) , (1) 1-1/4'' Knockout Punch (DCE600114P) , (1) 1-1/4'' Knockout Die (DCE600114D) , (1) 1-1/2'' Knockout Punch (DCE600112P) , (1) 1-1/2'' Knockout Die (DCE600112D) , (1) 2'' Knockout Punch (DCE600200P) , (1) 2'' Knockout Die (DCE600200D) , (1) 2-1/2'' Knockout Punch (DCE600212P) , (1) 2-1/2'' Knockout Die (DCE600212D) , (1) 3'' Knockout Punch (DCE600300P) , (1) 3'' Knockout Die (DCE600300D) , (1) 3-1/2'' Knockout Punch (DCE600312P) , (1) 3-1/2'' Knockout Die (DCE600312D) , (1) 4'' Knockout Punch (DCE600400P) , (1) 4'' Knockout Die (DCE600400D)
* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
