  3. DEWALT 20V Max Xr Rotary Hammer Drill, L-Shape Sds Plus, 1-1/8-Inch, Tool Only
DEWALT

DEWALT 20V Max Xr Rotary Hammer Drill, L-Shape Sds Plus, 1-1/8-Inch, Tool Only

DCH293B

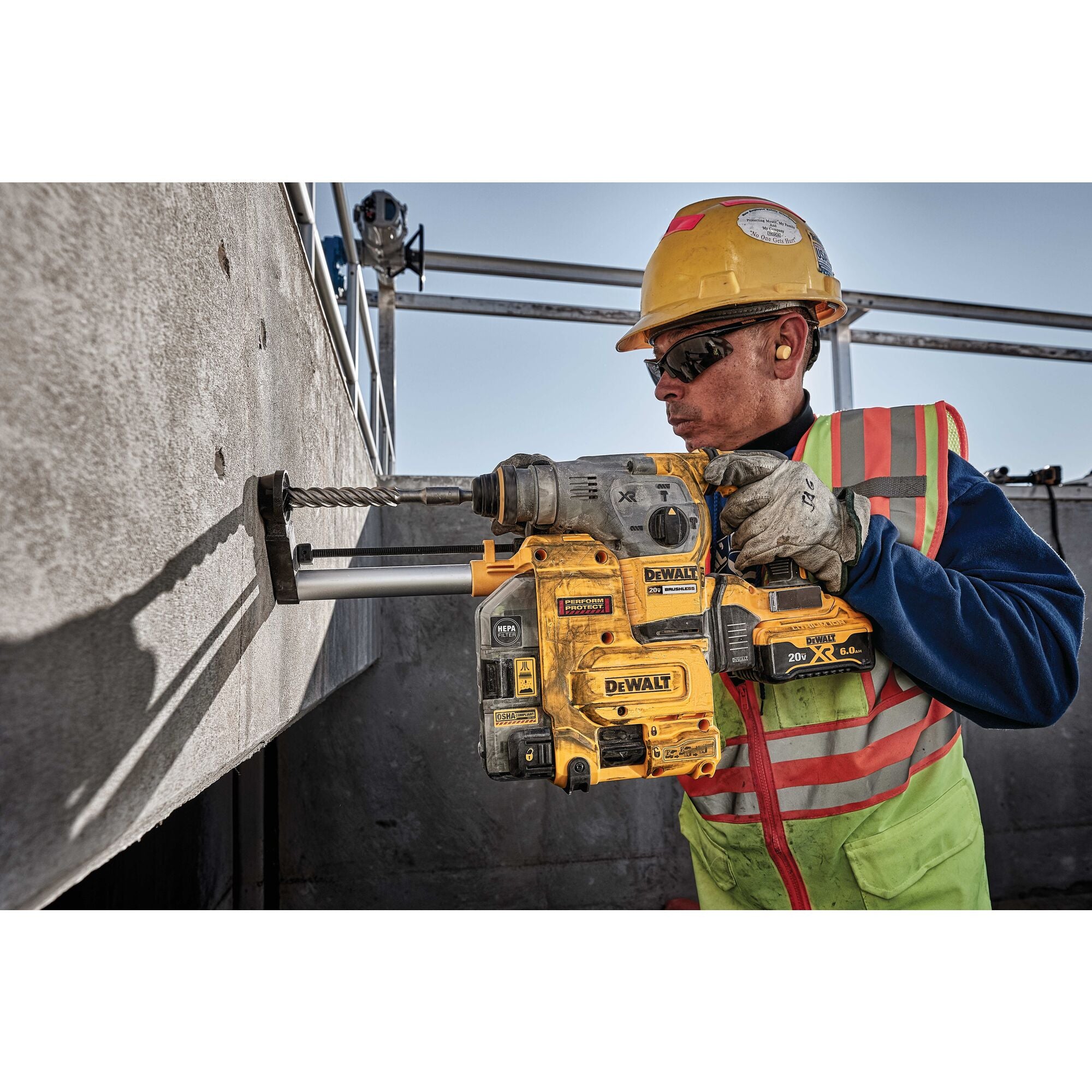

The 20V MAX* XR® Brushless 1-1/8 in. Rotary Hammer is a high-performance drill powered by a brushless motor and a durable German-engineered mechanism, delivering 3.5 Joules of impact energy. The lightweight design makes this rotary hammer ideal for structural connections, beam & column anchorage, rod hanging, seismic & safety attachments, cable tray & strut mounting, and steel stanchion mounting. It is part of the PERFORM and PROTECT product line, integrated with the Anti-Rotation E-CLUTCH® System and the SHOCKS ACTIVE VIBRATION CONTROL® System. E-CLUTCH protects the user in bind-up situations by stopping the rotation of the bit. SHOCKS® reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. This hammer becomes OSHA Table 1 Compliant when used with the DWH304DH On Board Extractor.

    • Cordless hammer drill featuring 3.5 Joules of impact energy provides corded power without the cord
    • DEWALT 2V hammer drill features E-Clutch for maximum control in bind-up situations - A Perform and Protect feature.
    • DEWALT built brushless motor for all day runtime and durability
    • Dust Management Ready. Use with D2534DH.
    • German Engineered for Quality and Durability
    • Retractable utility hook for convenient hanging
    • SHOCKS - Active Vibration Control of DEWALT 2V brushless hammer drill reduces vibration felt by the user at the handles. A Perform and Protect feature.
  • App Compatibility App Compatibility:
    No
    Battery Included Battery Included:
    false
    Battery Type Battery Type:
    20V MAX* Lithium Ion
    Battery Amp Hours Battery Amp Hours:
    6 Ah
    Charger Included Charger Included:
    false
    Chuck Size Chuck Size:
    1-1/8-in
    Chuck Type Chuck Type:
    SDS-Plus
    Cordless vs Corded Cordless vs Corded:
    Cordless
    Max RPM Max RPM:
    1000 RPM
    Motor Type Motor Type:
    Brushless
    Product Application Product Application:
    DRILLING
    Diameter Diameter:
    0.179
    Height Height:
    10.63 IN
    Length Length:
    15.5 IN
    Weight Weight:
    9.15 LB
    Width Width:
    4.3 IN
    Voltage Voltage:
    20 V
    Watt Hours Watt Hours:
    120

    Includes:

    (1) DCH293 Rotary Hammer,(1) 360 Degree Side Handle,(1) Depth Rod

* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
