DEWALT

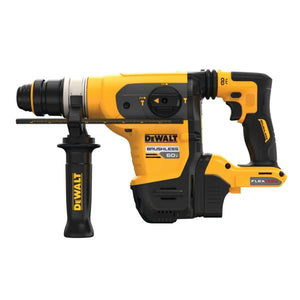

DEWALT 60V MAX* 1-1/4 in. Brushless Cordless SDS PLUS Rotary Hammer (Tool Only)

DCH416B

Tackle demanding jobs with this high-performance 60V MAX* 1-1/4 in. Brushless Cordless SDS PLUS Rotary Hammer. Capable of outputting up to 4.5 J of impact energy, this rotary hammer comes equipped with a DEWALT® brushless motor and German-engineered mechanism for fast drilling and chipping in even the hardest concrete. The midweight design makes it ideal for structural connections, beam and column anchorage, rod hanging, seismic and safety attachments, cable tray and strut mounting, and steel stanchion mounting. Part of the PERFORM & PROTECT product line, this hammer is integrated with the Anti-Rotation E-CLUTCH™ System and the SHOCKS™ Active Vibration Control System. E-CLUTCH™ shuts down the tool in bind up situations. SHOCKS™ reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. Link the DCH416 to the DCV585 60V MAX* dust extractor for remote extractor activation with WIRELESS TOOL CONTROL. This tool is Tag-Ready with a designated area for DCE041 Tag palcement. The DCE041 Tag is designed to be tracked with the TOOL CONNECT™ System via the DEWALT® Site Manager app. This rotary hammer becomes OSHA Table 1 Compliant when used with the DWH200D shroud and DCV585 dust extractor. Battery and charger not included.

    • FAST DRILLING IN CONCRETE with 4.5 J of impact energy
    • MIDWEIGHT DESIGN: Ideal for structural connections : beam and column anchorage : rod hanging : seismic and safety attachments : cable tray and strut mounting : and steel stanchion mounting
    • BRUSHLESS MOTOR & GERMAN-ENGINEERED MECHANISM for efficient performance and runtime
    • SHOCKS™ ACTIVE VIBRATION CONTROL System reduces vibration felt by the user at the handles comparted to rotary hammers without this feature
    • ANTI-ROTATION E-CLUTCH™ System shuts down the tool in bind up situations
    • OSHA TABLE 1 COMPLIANT when paired with DWH200D shroud and DCV585 dust extractor
    • ROTATING DIAL to quickly switch between drilling hammer drilling and chipping applications
    • TOOL CONNECT™TAG-READY: Features a designated area for DCE041 Tag placement which allows for tracking via the DEWALT® Site Managerapp
  • Battery Included Battery Included:
    false
    Battery Qty Battery Qty:
    0
    Battery Type Battery Type:
    60V MAX* Lithium Ion
    Battery Amp Hours Battery Amp Hours:
    0
    Charger Included Charger Included:
    No
    Chuck Type Chuck Type:
    SDS-Max
    Cordless vs Corded Cordless vs Corded:
    Cordless
    Motor Type Motor Type:
    Brushless
    Product Application Product Application:
    DRILLING
    Diameter Diameter:
    0.509 IN
    Height Height:
    4.813 IN
    Length Length:
    18.000 IN
    Weight Weight:
    10.200 LB
    Width Width:
    10.875 IN
    Voltage Voltage:
    60 V

    Includes:

    (1) DCH416 Rotary Hammer,(1) 360° Side Handle,(1) Depth Rod

* Maximum initial battery voltage (measured without a workload) is 60 volts. Nominal voltage is 54.
